Sure-Dry Before & After Photos

Before

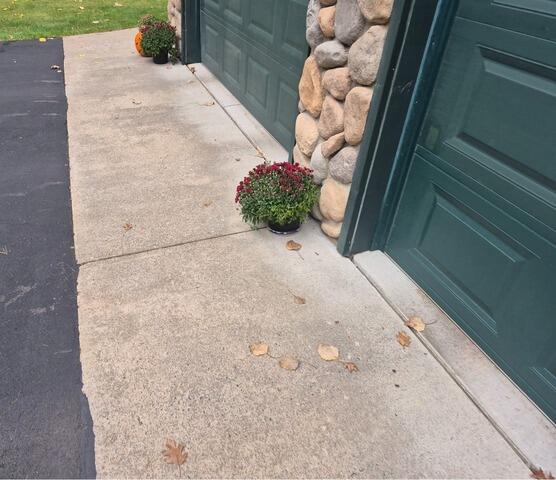

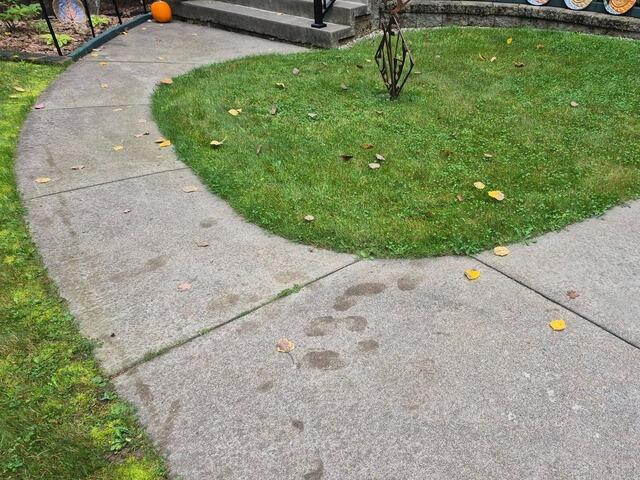

A homeowner in Rhinelander, WI had settling and uneven concrete affecting the garage apron and a large sidewalk system alongside the home. The walkway splits, with one section providing access toward the front of the property while another continues around to the back of the home. Settlement had created uneven transitions and areas where water could work its way into the joints and beneath the slabs.

Northern Wisconsin’s changing soil moisture, frost and repeated freeze-thaw cycles can contribute to soil movement and voids beneath exterior concrete, eventually leaving slabs without consistent support.

After

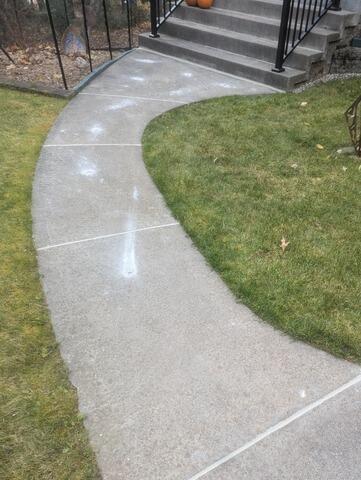

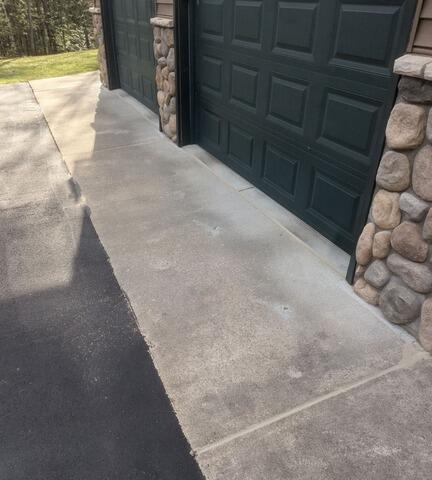

Sure-Dry used PolyLevel® to lift and stabilize the affected garage apron and sidewalk slabs. Small injection holes were drilled through the concrete, allowing lightweight polyurethane foam to be injected beneath the slabs. As the foam expanded, it filled underlying voids and provided controlled lifting to improve uneven areas and transitions.

Unlike traditional mudjacking, PolyLevel uses a lightweight material that adds significantly less weight to the soils beneath the concrete, requires smaller injection holes and cures quickly.

After the lifting was completed, NexusPro® Joint Sealant was used on the appropriate cracks and joints. Sealing these areas helps limit water intrusion beneath the slabs, where erosion and Wisconsin’s freeze-thaw conditions can contribute to future settlement.

With the garage apron and branching sidewalk lifted, stabilized and sealed, the homeowner now has safer, more even concrete providing access around the home.

For more concrete lifting and leveling projects in Rhinelander, WI click here.

Before

A homeowner in Rhinelander, WI had settling and uneven concrete affecting the garage apron and a large sidewalk system alongside the home. The walkway splits, with one section providing access toward the front of the property while another continues around to the back of the home. Settlement had created uneven transitions and areas where water could work its way into the joints and beneath the slabs.

Northern Wisconsin’s changing soil moisture, frost and repeated freeze-thaw cycles can contribute to soil movement and voids beneath exterior concrete, eventually leaving slabs without consistent support.

After

Sure-Dry used PolyLevel® to lift and stabilize the affected garage apron and sidewalk slabs. Small injection holes were drilled through the concrete, allowing lightweight polyurethane foam to be injected beneath the slabs. As the foam expanded, it filled underlying voids and provided controlled lifting to improve uneven areas and transitions.

Unlike traditional mudjacking, PolyLevel uses a lightweight material that adds significantly less weight to the soils beneath the concrete, requires smaller injection holes and cures quickly.

After the lifting was completed, NexusPro® Joint Sealant was used on the appropriate cracks and joints. Sealing these areas helps limit water intrusion beneath the slabs, where erosion and Wisconsin’s freeze-thaw conditions can contribute to future settlement.

With the garage apron and branching sidewalk lifted, stabilized and sealed, the homeowner now has safer, more even concrete providing access around the home.

For more concrete lifting and leveling projects in Rhinelander, WI click here.

Before

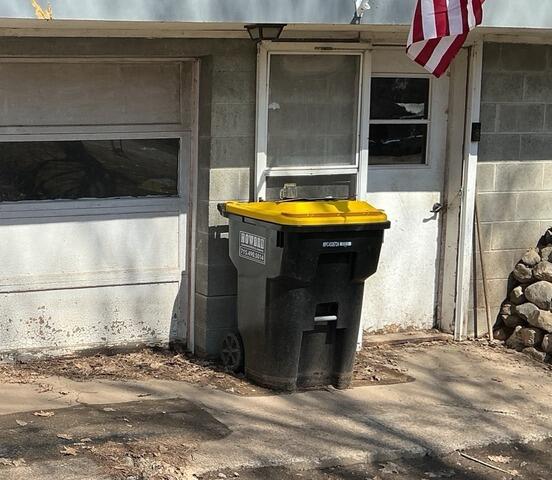

A homeowner in Rhinelander, WI was experiencing significant settlement in the lower level of their bi-level home, where the garage was located. Both the foundation and concrete floor were sinking, creating concerns about the long-term stability of this portion of the house.

During the evaluation, numerous voids were discovered beneath the concrete. These empty spaces meant portions of the floor and foundation were no longer receiving the support they needed. Continued settlement could lead to increasingly uneven floors, cracking and additional structural movement.

Soil conditions around Northern Wisconsin homes can change over time as moisture levels fluctuate and the ground goes through repeated freeze-thaw cycles. When supporting soils settle, consolidate or wash away, voids can develop beneath concrete and foundations.

After

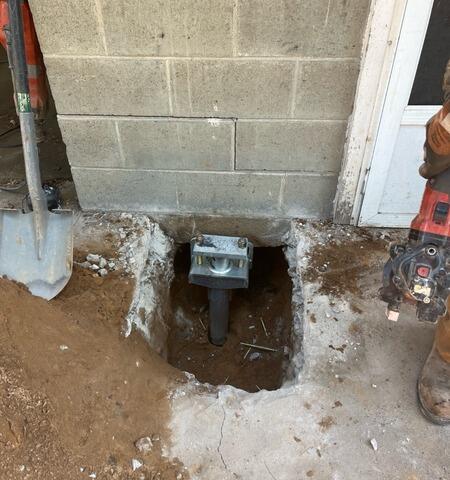

Sure-Dry installed Push Piers beneath the settling portion of the home. The engineered steel piers were hydraulically driven through the unstable soils until reaching competent load-bearing soil or bedrock.

Once the pier system was secured to the foundation, the home's weight could be transferred away from the failing soils and onto the deeper, more reliable support. The system also allowed the crew to carefully lift the settled lower portion of the bi-level home toward its original position.

By addressing the structural settlement at its source, Sure-Dry was able to stabilize the lower level and provide a long-term solution for the sinking foundation.

For more foundation repair projects in Rhinelander, WI click here.

Before

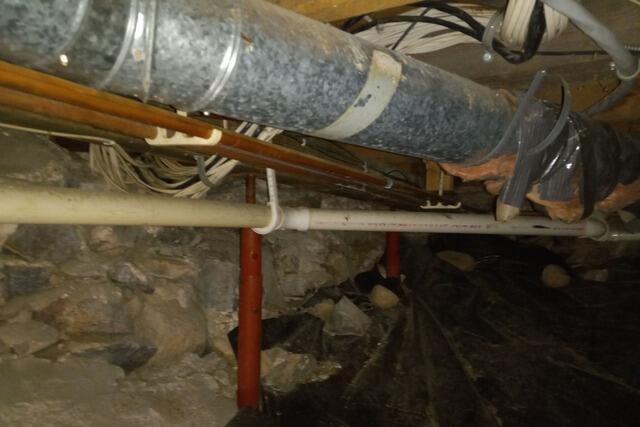

A homeowner in Rhinelander, WI was noticing sloping and uneven floors inside their home. The problem could be traced to the crawl space below, where the existing floor support system was no longer providing adequate support for the floor joists and structure above.

Over time, inadequate supports and changing soil conditions beneath a crawl space can allow beams and floor joists to sag. In Northern Wisconsin, seasonal moisture changes and freeze-thaw conditions can also contribute to movement in the soils supporting a home.

After

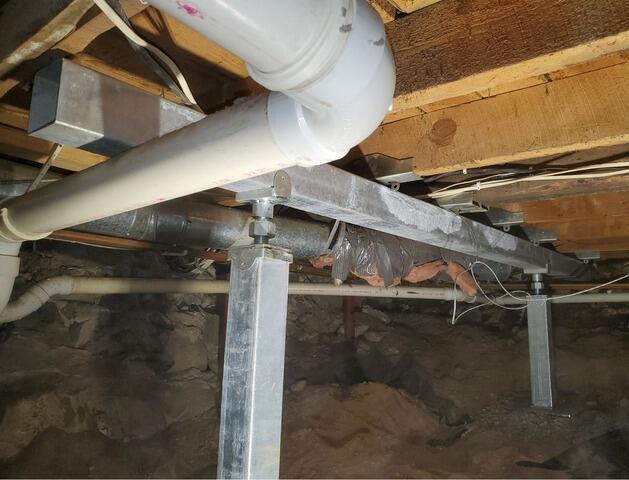

Sure-Dry installed SmartJack® crawl space supports beneath the affected areas.

The SmartJacks were positioned beneath the existing support beams to provide strong, adjustable support for the floor system above. Once installed, the system allowed the crew to carefully improve the position of the sagging floor system where conditions allowed while providing permanent stabilization against continued downward movement.

With the crawl space properly supported, the homeowner now has a stronger foundation beneath the previously sloping floors and an adjustable system that can be maintained over time if necessary.

For more crawl space repair projects in Rhinelander, WI click here.

Before

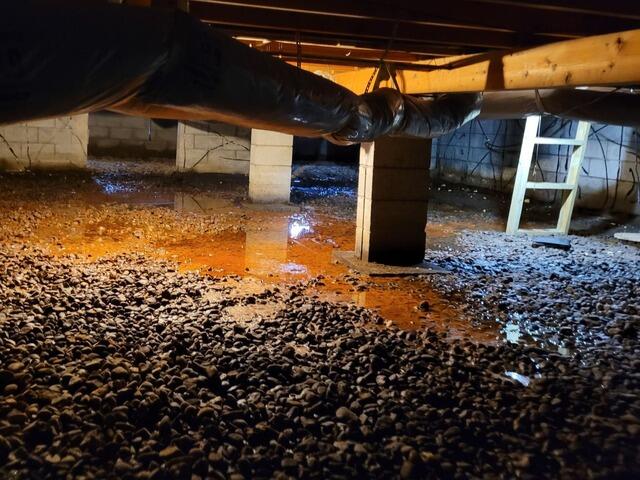

A homeowner in Rhinelander, WI had a crawl space that needed better protection from groundwater, moisture and Northern Wisconsin’s changing seasonal conditions. An exposed or poorly protected crawl space can allow moisture to enter from the ground and foundation walls, contributing to high humidity, musty odors, damp insulation and an unhealthy environment beneath the home.

Because air from the crawl space can eventually make its way into the living areas above, controlling moisture below the home is an important part of protecting the entire house.

After

Sure-Dry transformed the crawl space with a complete moisture-control and waterproofing system.

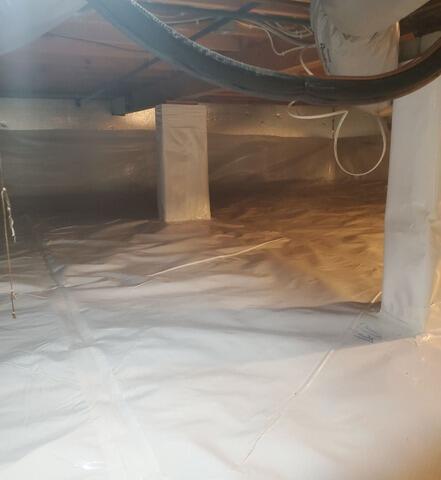

CleanSpace® was installed across the crawl space to isolate the home from ground moisture. This durable liner creates a clean, bright barrier while helping prevent water vapor from entering the crawl space.

The foundation walls were insulated with SilverGlo™ rigid foam insulation. SilverGlo helps improve the crawl space's thermal performance while providing an additional layer of protection along the foundation walls.

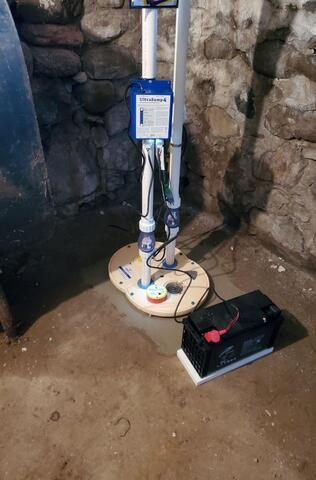

A SmartSump™ crawl space sump system was also installed to collect and remove water before it could accumulate beneath the home. A battery backup system provides additional protection if the primary pump loses power during a storm or outage.

Together, CleanSpace, SilverGlo, SmartSump and battery backup provide a comprehensive solution designed to keep this Rhinelander crawl space drier, cleaner and better protected throughout the year.

For more crawl space repair projects in Rhinelander, WI click here.
